Enclosure

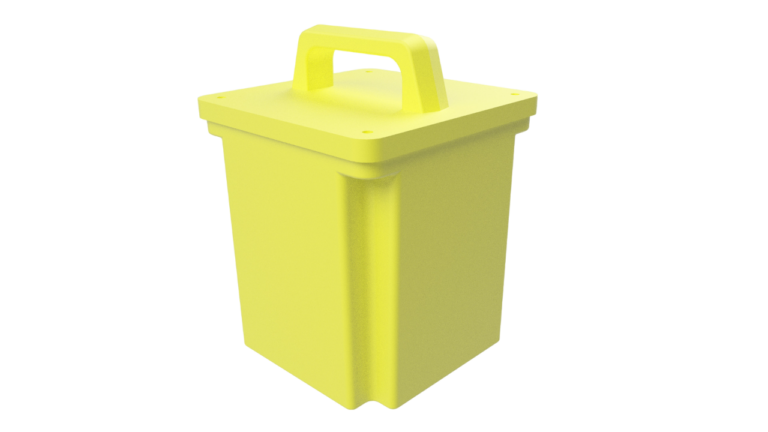

Portable Enlcosure

RG 601-RG 801

Portable plastic enclosures for electrical engineering

The portable housings of the RG 601 – RG 801 series are made of a glass fiber reinforced polyester resin and are therefore stable and impact-resistant.

Generally:

The housings are specially designed for the use of electrical devices, are self-extinguishing and non-hygroscopic. A neoprene seal between the lid and the housing ensures the appropriate seal. The immersion test in water showed that no penetration of moisture was detectable up to a depth of 1m for a period of 8 days.

Temperature resistance: -32°C to 220°C.

The housings are designed in IP 67 and are available in the colors blue, red and yellow (please specify color when ordering). Other colors on request.

Upon request, the housings can be supplied with holes and cutouts according to drawings for an additional charge.

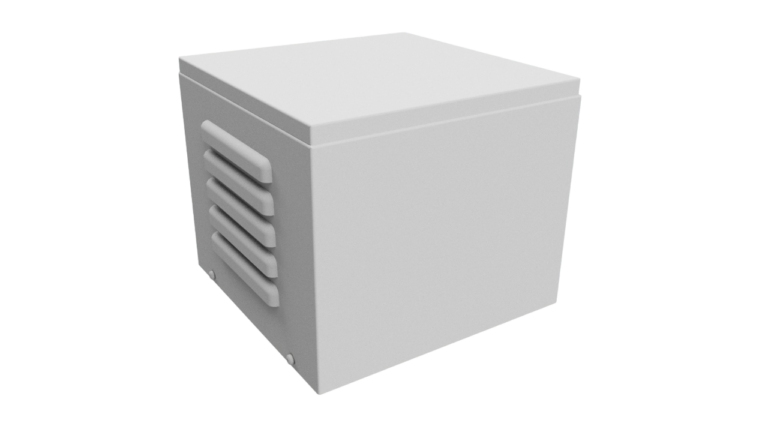

Stand housing

RG 0-RG 4a

Metal housing for electrical engineering

Stand housing
Material: St. 1203
Plastic coated RAL 7035
Protection class: IP 23

Optional:
Available upon request for an additional charge:

  • Available with handle from size 1
  • with MG cable entries according to customer specifications
  • Additional holes

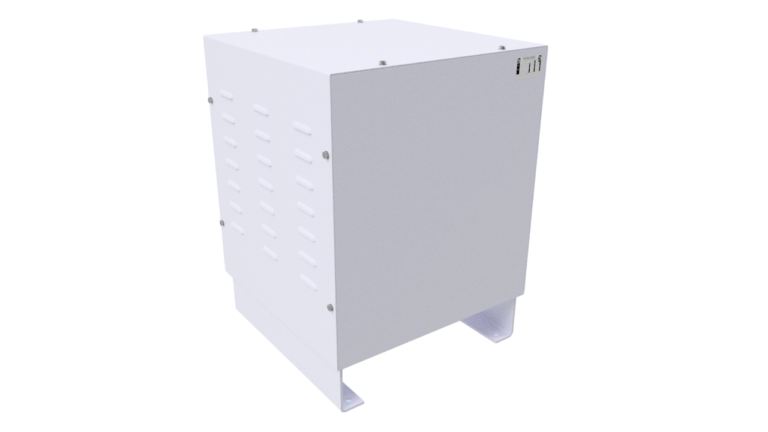

Stand housing

RG 300-320

Metal housing for electrical engineering

Stand housing
Material: St. 1203
Plastic coated RAL 7035
Protection class: IP 23

Optional:
Available upon request for an additional charge:

  • with MG perforation according to customer specifications
  • with MG cable entries according to customer specifications
  • with a different color, e.g. RAL 6011/9001

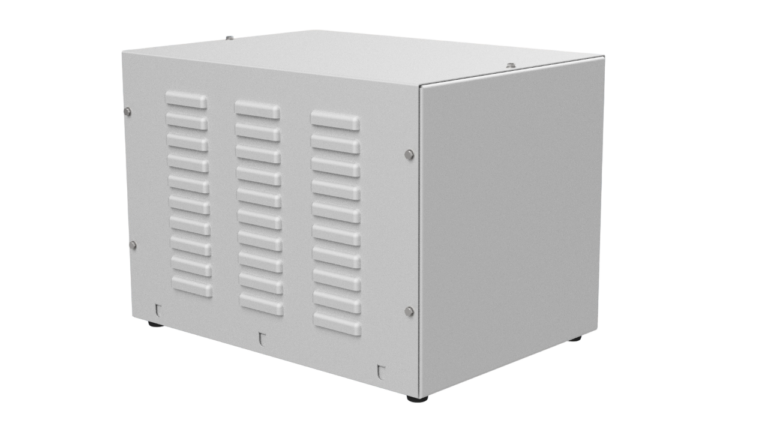

Stand housing

RG 20-29

Metal housing for electrical engineering

Stand housing
Material: St. 1203
Plastic coated RAL 7035
Protection class: IP 23

Optional:
Available upon request for an additional charge:

  • Upper housing part also available without air slot
  • with MG cable entries according to customer specifications
  • Additional holes

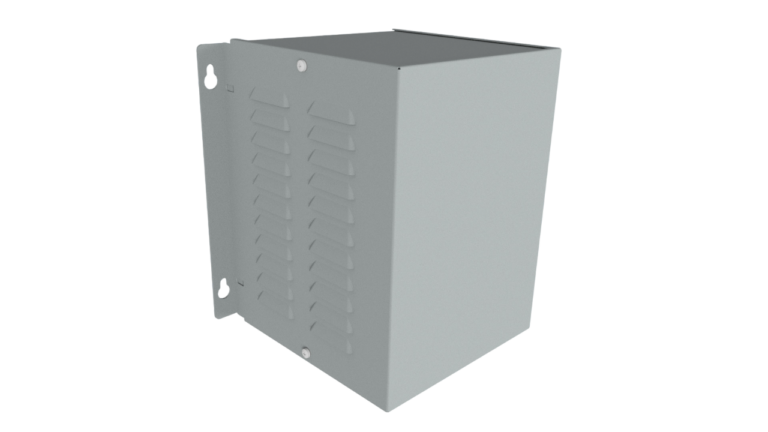

Wall housing

RG 20-29

Metal housing for electrical engineering

Wall housing
Material: St. 1203
Plastic coated RAL 7035
Protection class: IP 23

Optional:
Available upon request for an additional charge:

  • with MG perforation according to customer specifications
  • with MG cable entries according to customer specifications
  • with a different color, e.g. RAL 6011/9001

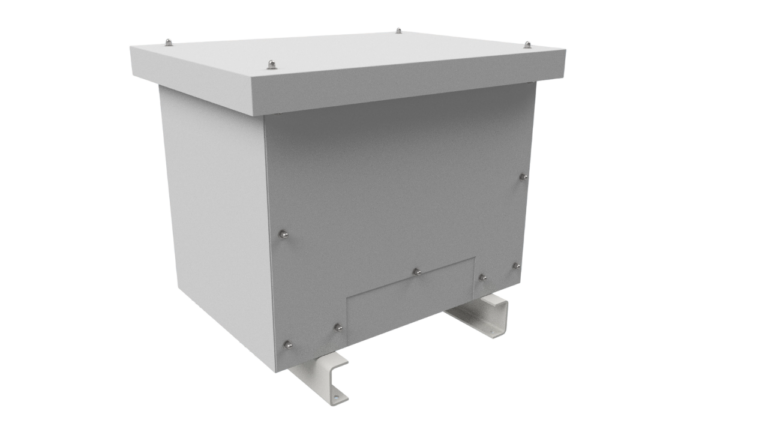

Stand kit housing

RG 110-250

Metal housing for electrical engineering

Stand – kit housing
Material: St. 1203
Plastic coated RAL 7035

Optional:
Available upon request for an additional charge:

  • with MG perforation according to customer specifications
  • with MG cable entries according to customer specifications
  • with a different color, e.g. RAL 6011/9001

Available in:

  • IP 02 – without perforated grid plate
  • IP 23 – with perforated metal sheet
  • IP 54 – with closed base plate and hollow profile seal
    Material: EPDM quality self-adhesive

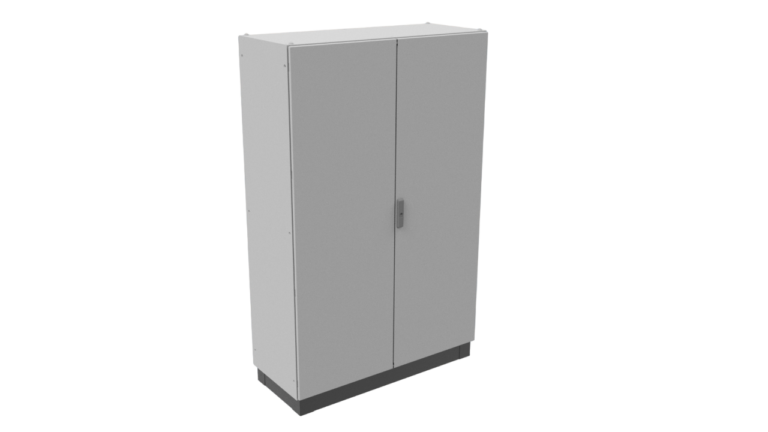

Universal Rittal steel cabinets

RAE 1032-RTS 8206

Universal Rittal steel cabinets
(for floor installation or wall mounting)

Material: St. 1203
Plastic coated RAL 7035

Execution:
Cabinet with galvanized pre-assembled mounting plate, powder-coated in RAL7035 structure, type RAE in IP66/NEMA4, type RCM and RTS in IP55/NEMA12, door hinge on the right (also left on request), flange plate in the housing base, standard delivery from a height of 600mm standing with U-iron base 100mm in the same RAL7035

Special versions:
Other dimensions and color, cable glands, ground straps, mounted transformer and accessories, mountable base, wall hanging, fan, labeling, safety accessories

Optional:

Available on request

  • Heavy duty attachment for transformer
  • U-iron base 100mm
  • Frame base 100mm
  • Frame base 200mm
  • Wall bracket set
